While more than six million people with tuberculosis (TB) were treated and notified to national TB programs (NTP) in 2015, a further four million people remained undiagnosed and/or not notified. This poor case detection rate has been a persistently lagging indicator at a global-level for the past decade.1

When the Xpert MTB/RIF assay (Cepheid Sunnyvale, USA) was introduced, there were many expectations about how the test would impact the TB epidemic.2–4 Although use of the Xpert assay has steadily increased over the past five years,5 most of the testing outside South Africa has been focused on relatively small groups of people at higher risk for drug-resistant TB and only a handful of countries use Xpert as the first test for all people with suspected TB. The scale up of Xpert testing has increased the number of people identified with drug-resistant TB, as the Xpert assay rapidly provides a rifampicin resistance result and programs can be better link people with TB to appropriate care. However, controlled trials,6,7 programmatic evaluations8 and national data from South Africa,1 have shown that Xpert testing which replaces smear microscopy (e.g., no increase in testing volumes) does not improve the number of people initiated on drug-sensitive TB treatment, and in some cases, the scale up of Xpert testing has resulted in a decrease in TB treatment as clinicians may be less likely to diagnose TB clinically when faced with a negative Xpert result.

The overwhelming majority of Xpert cartridges are procured by African and Asian countries, with Brazil being the largest market in Latin and South America.9 Outside of Brazil, there are few examples of Xpert scale up from a programmatic context,10,11 possibly due to the region's lower burdens of human immunodeficiency virus (HIV) and drug-resistant TB and lower levels of external/donor funding which are often used to finance the more expensive test in other high TB burden settings.

Guatemala presents an interesting epidemiological setting in which to evaluate the introduction of Xpert testing, as its impact on TB treatment rates could be different from what has been observed in other high TB burden countries. Guatemala has a low HIV burden and a network of 290 health facilities equipped with quality-assured smear microscopy for a country of 15.5 million inhabitants. According to the World Health Organization's (WHO) 2016 TB figures, Guatemala detected and notified 80% (confidence interval: 64-100%) of its estimated incident TB burden.1 However, in the previous year the WHO estimated Guatemala's case detection rate to be just 34% (confidence interval: 31-39%), indicating the level of uncertainty in TB burden estimates for countries which have not conducted a recent TB prevalence survey.12 Other Central American countries have had consistently higher case detection rates (87% in Salvador, 82% in Honduras and 76% in Nicaragua).1 A very high proportion of Guatemala's new pulmonary adult TB notifications are smear-positive (85% in 2012) compared to other countries in the region (78%) and globally (56%). Given the reliance on smear microscopy despite its low sensitivity,13 the possible low case detection rate in Guatemala, and the low proportion of clinically diagnosed pulmonary TB, we designed an evaluation to assess the impact of introducing Xpert as a follow-on test after smear microscopy on the total number pulmonary TB notifications.

Table 1 shows a summary of the NTP's diagnostic smear microscopy testing rates and yields, as well as the coverage and yield of Xpert testing. The NTP laboratory data show that the number of diagnostic smear investigations declined by almost 10% year-on-year at the time Xpert testing was introduced. However, smear-positive TB yields remained stable (5.2% in year prior vs 5.7% during the intervention; p=0.03). During the intervention period, 19,276 people underwent a diagnostic smear microcopy evaluation in the six intervention departments. Of people who were smear tested, 1090 (5.7%) were diagnosed with smear-positive TB. 7193 people with smear-negative results were then tested on Xpert (39.6% of those who were eligible). Xpert coverage increased from 35.0% in the intervention's first quarter to 50.0% by the end of the evaluation. 199 people were detected with smear-negative, Xpert-positive TB (2.8% of those tested), and just 4 (2.0%) of these people had rifampicin-resistant TB. Table 2 shows the demographic details of Xpert-positive individuals. More males than females were diagnosed with Xpert-positive TB and the largest percentage of Xpert-positive results (39.0%) were among people aged 14-34 years. HIV results were not available for all Xpert-positive individuals, however just 12 (6.5%) had a documented HIV co-infection.

Table 3 shows how pulmonary TB notifications changed during the intervention period across the six intervention departments. During the four quarters immediately preceding introduction of Xpert, 195 people with smear-negative TB and 1098 people with smear-positive TB were notified (total of 1,293 people with pulmonary TB). During the four quarters when Xpert tested was introduced, 362 smear-negative individuals were notified (85.6%), while smear-positive enrolments remained stable. The gain in smear-negative notifications, driven by the increase bacteriological confirmation of TB from Xpert testing, increased total pulmonary notifications by 12.3%. After adjusting for secular notification trends in the pre-intervention quarters, smear-negative notifications were 108.0% above trend expectations and all pulmonary TB was 19.1% higher.

If Xpert testing coverage among people with smear-negative results reached 100%, rather than the 39.6% actually achieved, an additional 271 people with Xpert-positive TB could have possibly been identified (Fig. 2). If all of these people were linked to treatment, 1,723 people with pulmonary TB might have been notified across the six intervention departments —a 41.2% increase over trend-expected notifications. Given the superior sensitivity the Xpert MTB/RIF Ultra assay,18,19 an additional 350 people with Ultra-positive TB might have been identified —a 47.7% increase over trend expected notifications.

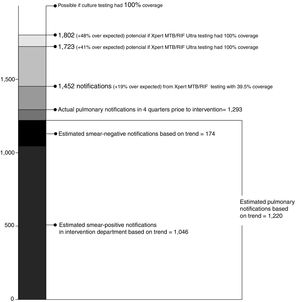

Figure 2.

The actual and theoretical yield of expanding more sensitive diagnostic testing.

(0.22MB).

This programmatic evaluation of the introduction of Xpert testing suggests that a large number of people with TB who currently access health services in Guatemala are not being correctly diagnosed, resulting in missed opportunities for treatment, continued transmission of TB in communities and preventable deaths. These findings contrast with published studies from other high TB burden settings which have documented no increases (or even declines) in population-level TB treatment figures after the introduction of more sensitive TB diagnostic tools.6–8 We find that Xpert testing alone resulted in a 12.3% increase in pulmonary TB notifications (19.1% after controlling for secular notification trends), despite only achieving a testing coverage of 39.6%. The increases in pulmonary TB notifications directly correlates with the timing of Xpert testing introduction and the yield from Xpert testing.

Ultimately, our findings underscore the important role that clinical diagnosis must play in the TB response, especially when smear testing remains commonplace. Many groups are likely to be missed by smear microscopy given its low sensitivity, including people living with HIV,17,20 children18,21 and women.20,22 Although people with smear-positive TB are likely more infectious, people with smear-negative TB contribute to a substantial portion of transmission21,23,24 and more efforts must be placed on identifying these harder to diagnose people.

We believe the gains in pulmonary notifications measured in this evaluation are due in large part to low rates of clinical diagnosis in the period before the intervention and that these finding could possibly be replicated in other settings where clinical diagnosis is similarly limited. We measured gains in TB notifications with relatively low laboratory yields, and less than 40% testing coverage among our target population. Our results suggest that even greater gains could be achieved with higher testing coverage, perhaps up to a 41% increase in TB treatment. In addition, the new Xpert MTB/RIF Ultra test has an even higher sensitivity, particularly among people with smear-negative results15 and could increase gains even further (perhaps a 48% increase). Further studies are needed to document how new, highly sensitive TB diagnostics impact clinicians’ decisions on diagnosing TB in the absence of bacteriological confirmation.

Our findings also highlight the challenge TB programs face when developing interventions and investment plans based on WHO TB burden point estimates, which can fluctuate from year to year and come with wide confidence intervals when no direct measures of TB burden are available. We have conclusively showed that a substantial number of people with TB are currently being missed in Guatemala despite official statistics showing a case detection rate of 80%.

The use of GxAlert greatly improved the ability of program coordinators to monitor the intervention. Results were transmitted in real-time which enabled prompt follow-up with local facilities for positive and failed test results. This program was not the first to introduce Xpert testing in Guatemala, as there were a few GeneXpert machines used for drug resistance testing before this intervention. However, the importation of the machines and cartridges was not as easy as has been reported elsewhere.5,23,25 High importation taxes on the Xpert cartridges added 50% to the per test cost and the increased cost will hamper efforts to increase testing volumes and achieve universal drug susceptibility testing targets.24-27 While some studies have found Xpert to be cost savings or cost neutral,16,19,26,27 this will likely vary by setting and we have not attempted any costing analysis.

This was not a strictly controlled trial, but rather a programmatic evaluation and external factors may have influenced TB notifications, including a large health worker strike which contributed to the decline in diagnostic smear evaluations during the intervention period. However, our results reflect the realities of introducing and scaling up Xpert testing in Guatemala on a programmatic level. Guatemala is testing a considerable number of people for TB by microscopy and has a large network of laboratories. The yields from three smears under routine conditions are very low (about 5%), which is in stark contrast to the yields from passive case finding in other high TB burden settings.22 Similar to other studies where Xpert was used as a follow-on test after a negative smear result, the yields of Xpert were less than microscopy, but are still noteworthy since they were testing only those with smear-negative results.23
